AXEON® L1-Series Reverse Osmosis Systems are a cost–effective solution for light commercial reverse osmosis applications such as coffee, tea, food preparation, misting, hydroponics, detailing and more.

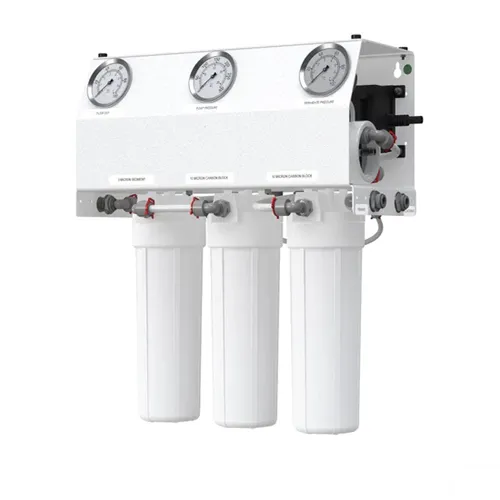

 AXEON L1-Series Reverse Osmosis Systems feature a compact wall mount space saving design and comes pre-assembled and ready for immediate service with simple utility connections. These systems are available in capacities of 200 and 300 gallons per day and feature a single pump design for reliable performance. Each model is engineered with quality AXEON components including fiberglass (FRP) membrane housings, extra low energy membranes, pressure gauges, filters and housings.

Features:

• AXEON HF4 – Series Extra Low Energy Membrane Elements
• AXEON FRP– Series 300E Fiberglass Membrane Housing
• AXEON 5-Micron Sediment Pre-Filter
• AXEON 10-Micron Carbon Block Pre-Filter and Post-Filter
• Pentair® 10" Slim Line Cartridge Housings
• AXEON 0-300 psi Glycerin-Filled Pump Pressure Gauge
• AXEON 0-100 psi Glycerin-Filled Pre-Filter Pressure Gauge
• AXEON 0-100 psi Glycerin-Filled Permeate Pressure Gauge
• Aquatec® Tank High Pressure Switch
• Composite Feed Solenoid Valve
• Aquatec Auto Flush Timer Valve
• Aquatec High Flow Booster Pump
• John Guest® Push/Pull Fittings with Locking Safety Clips

Specifications:

• Model: L1-200
• AXEON Part Number: 207315
• Capacity (gpd): 200

Design:

• Configuration: Single Pass
• Feedwater Source: TDS <1,000 ppm
• Standard Recovery Rate %: 40

Rejection and Flow Rates:

• Permeate Flow (gpm): 0.14
• Minimum Feed Flow (gpm): 0.35
• Minimum Concentrate Flow (gpm): 0.21
• Nominal Salt Rejection %: 98.5

Connections:

• Feed (in): 3/8" QC
• Permeate (in): 3/8" QC
• Concentrate (in): 1/4" QC

Membranes:

• Membrane(s) Per Vessel: 1
• Membrane Quantity: 1
• Membrane Size: 2514

Vessels:

• Vessel Array: 1
• Vessel Quantity: 1

Pumps:

• Pump Type: Aquatec 8800

System Electrical:

• Standard Voltage Amp Draw: 110V, 60Hz, 1PH, 4.0A

Operating Limits:

• Maximum Feed Temperature (°F / °C): 85 / 29
• Minimum Feed Temperature (°F / °C): 40 / 4
• Maximum Ambient Temperature (°F / °C): 120 / 49
• Minimum Ambient Temperature (°F / °C): 40 / 4
• Maximum Feed Pressure (psi / bar): 85 / 6
• Minimum Feed Pressure (psi / bar): 45 / 3
• Maximum Operating Pressure (psi / bar): 110 / 7.5
• Maximum Feed Silt Density Index (SDI): < 3
• Maximum Turbidity (NTU): 1
• Maximum Free Chlorine (ppm): 0
• Maximum TDS (ppm): 1,000
• Maximum Hardness (gpg): 1
• Maximum pH (Continuous): 11
• Minimum pH (Continuous): 2
• Maximum pH (Cleaning 30 Minutes): 13
• Minimum pH (Cleaning 30 Minutes): 1

Warranty

• 1-Year Manufacturer's Warranty
